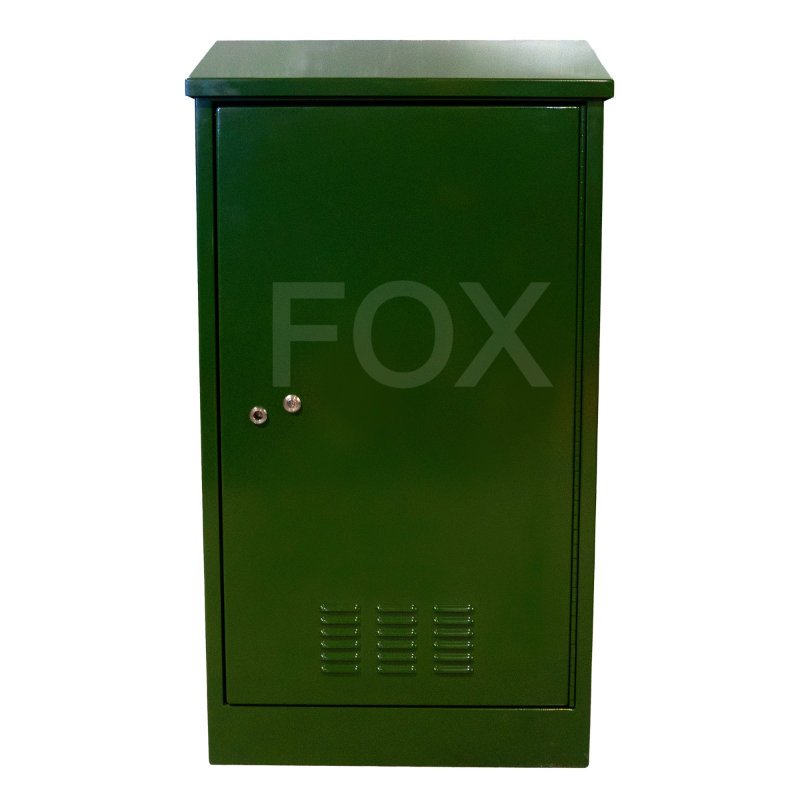

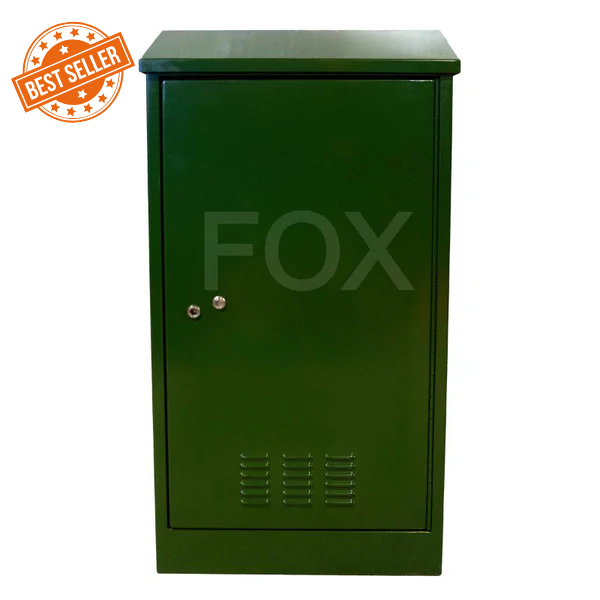

Street Cabinet - Single Bay FA (Front Access)

Download

FDMS cabinets are Made in Britain at our manufacturing facility in Flintshire the 650 Range are designed for external use and are manufactured from 2mm thick 4003 stainless powder-coated, and are fully weld robust heavy-duty cabinets.

Our flexible design allows the cabinets to be used in many different applications ranging from FTTx, to include FTTN, FTTH, FTTP, FTTC, Fibre, Comms equipment, 19” rack equipment, Security, power and much more.

The fully adjustable rail system allows the 19” vertical rails fitted at the front and rear of the cabinet to be set by the customer offering a wide range of depths for equipment mounting, this help facilitate deeper 19” equipment.

Cabinets are supplied with additional facilities for mounting electrical metering, power distribution equipment and backup batteries, cable management are fitted along the side of the vertical rails both front and rear.

Cabinet 650 Range with front access comes complete with 3-point locking secured by a secondary security key lock and plywood backboard, as a single module it is part of a much larger family of our cabinets, please refer to our website for details.

Ventilation is provided through louvres manufactured within the front lower sections of the doors. The cabinets are supplied with three thermostatically controlled fans in the roof with all extraction points protected with mesh screen to prevent against vermin and insects.

Cabinets are design for surface mount on a concreate base, it is recommended that once the cabinet is installed the bas is filled with a resin pack.

Details and features

  • Front access.
  • Fully adjustable vertical rails front and rear.
  • Doors complete with 3-point lock and secondary security lock system.
  • Apex roof.
  • Open base entry.
  • Fully welded construction.
  • Fully vented complete with 3-fan assembly.
  • Also available in 304 or 316 stainless.
  • Available in Black, Green or Grey as standard, other colours available on request.
  • IP55 rated.
  • Weight 125kgs approximate.
  • Base bolt hole and all four sides M20.
