Multi-Purpose Equipment Pillar
Couldn't load pickup availability

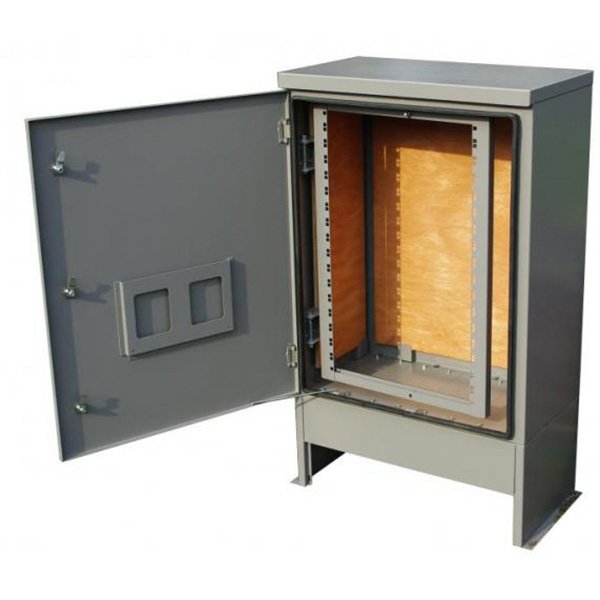

The Multi-Purpose Equipment Pillar is a flexible medium duty general purpose cabinet suitable for most electrical and low power equipment use.
Manufactured entirely in 2mm chrome steel, the cabinet is rated IP55 weather protected.
9CAB22602A 602 CABINET
The Multi-Purpose Equipment Pillar is a flexible medium duty general purpose cabinet suitable for most electrical and low power equipment use.
Manufactured entirely in 2mm chrome steel, the cabinet is rated IP55 weather protected.
The cabinet is supplied as standard with removable cover plates in the base for maximum ingress protection, plywood backboards in rear and sides for equipment mounting and a 17U 19″ swing frame.
The frame may be mounted either side of the cabinet and swings open a full 120 degrees.
BASE
Base options include open bridge, open box with removable cover plates front and rear and fully enclosed.
DOORS & SECURITY
Two door options are available:
Standard: Featuring twin triangular keyed locks
Secure with three point locking and dead lock for enhanced protection.
In both case the doors open 120 degrees and are sealed using high quality weather seals.
Dimensions: | WxDxH |
Overall | 730x416x1230 |
Interior | 725x390x900 |
Plinth | 730x390x300 |
Backboard rear | 640×830 |
Backboard side | 225×830 |
