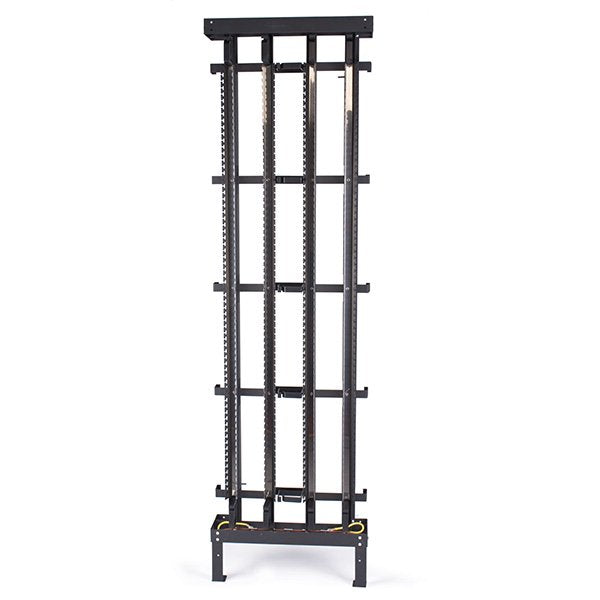

City 80 Frame [2-Vert]
Frame Distribution City 80 is two vertical, modular distribution frame with capacity of 1600 pairs 10 pairs per strips connection 237A. Can be assembled side-by-side for wall mounting, or back-to-back for free-standing applications, cable management and earthing provided.
Adjustable legs allow for uneven flooring, or may be removed where height is a limitation.
9FRA223731
TELECOMS DISTRIBUTION FRAME
| Height including legs: | 2248mm |
| Height without legs: | 2092mm |
| Width: | 570mm |
| Depth: | 150mm |
| Weight: | 25Kg |
| Capacity: | 1600 pair |
