Cabinet No.7/7
Couldn't load pickup availability

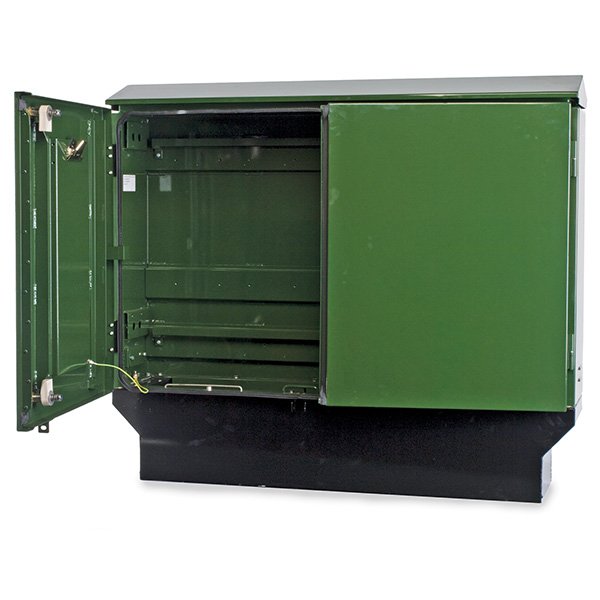

The cabinets No7/7 are cross connection cabinets manufactured in aluminium.
The cabinets are supplied as standard with heavy duty stainless steel latches and there is provision for secondary security locks.
9CAB2182C0 NO. 7/7 GREEN
9CAB2182D5 NO. 7/7 BLACK
OUT-DOOR DISTRIBUTION CABINETS
The cabinets No7/7 are cross connection cabinets manufactured in aluminium.
The cabinets are supplied as standard with heavy duty stainless steel latches and there is provision for secondary security locks.
PLINTH
3mm chrome steel base. Separated from body by full flange rubber gasket to prevent galvanic corrosion.
Two plinth variants are available for cabinet No7 to suit the number of inbound telecom ducts.
No 7/7 houses upto 7 ducts and incorporates internal flanging to reduce the depth.
An internal security bracket on the hinge side of the door, prevent the door being removed even if the hinges are forced.
EQUIPMENT MOUNTING (BACKBOARDS)
Cabinet No 6 and No 7 is supplied with backboard for maximum flexibility in mounting equipment.
Alternitavely, the cabinets can be supplied with custom produced boards in stainless steel, aluminium and other custom mounting, on special order.
Optional gauge plates can be provided for mounting pressure gauges and transducers.
INSTALLATION
No 7/7 is designed for surface mounting on prepared platform.
FACT FILE
Dimensions OAL (WDH) | 1410x373x1220 |
Case interior Size (effective) | 1350x285x840 |
Plinth | 1410x308x280 |
Bolt Hole Pitch | 7/5: 1500×400 7/7: 1465×254 |
Recommended Foundation (min) | 7/5: 1500×400 7/7: 1570×400 |
Recommended Plinth Install Depth | 100mm |
IP Rating | IP55/65 |
Inbound Ducts | 7/5:5 7/7:7 |
Weight | 105kg |
Terminal Capacity Krone237(banks) Bix 3M(Banks) |
2400 (8×30) 2400 2500 (5×50) |
