Cabinet No.6
Couldn't load pickup availability

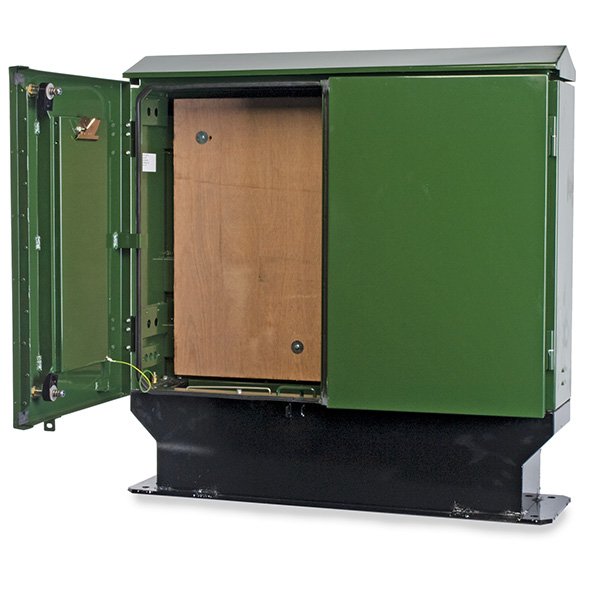

The cabinets No6 are cross connection cabinets manufactured in aliminium.
The cabinets are supplied as standard with heavy duty stainless steel latches and there is provision for secondary security locks.
9CAB215255 NO. 6 GREEN
9CAB2152A5 NO. 6 BLACK
The cabinets No6 are cross connection cabinets manufactured in aliminium.
The cabinets are supplied as standard with heavy duty stainless steel latches and there is provision for secondary security locks.
PLINTH
3mm chrome steel base. Separated from body by full flange rubber gasket to prevent galvanic corrosion.
Two plinth variants are available for cabinet No6 to suit the number of inbound telecom ducts.
No 6 houses 4 ducts and is of the waisted design in the diagram below.
An internal security bracket on the hinge side of the door, prevent the door being removed even if the hinges are forced.
EQUIPMENT MOUNTING (BACKBOARDS)
Cabinet No 6 is supplied with backboard for maximum flexibility in mounting equipment.
Alternitavely, the cabinets can be supplied with custom produced boards in stainless steel, aluminium and other custom mounting, on special order.
Optional gauge plates can be provided for mounting pressure gauges and transducers.
INSTALLATION
No 6 requires prepared sub-surface concrete foundation for installation.
FACT FILE
Dimensions OAL (WDH) | 1192x316x1220 |
Case interior size (effective) | 1142x225x840 |
Plinth | 1192x340x280 |
Bolt Hole Pitch | 1092×254 |
Recommended Foundation (min) | 1300×400 |
Recommended Plinth Install Depth | 100mm |
IP Rating | IP55/65 |
Inbound Ducts | 4 |
Weight | 55kg |
Terminal Capacity Krone237(banks) Bix 3M (Banks) |
1800 (6×30) 1800 2000 (4×50) |
