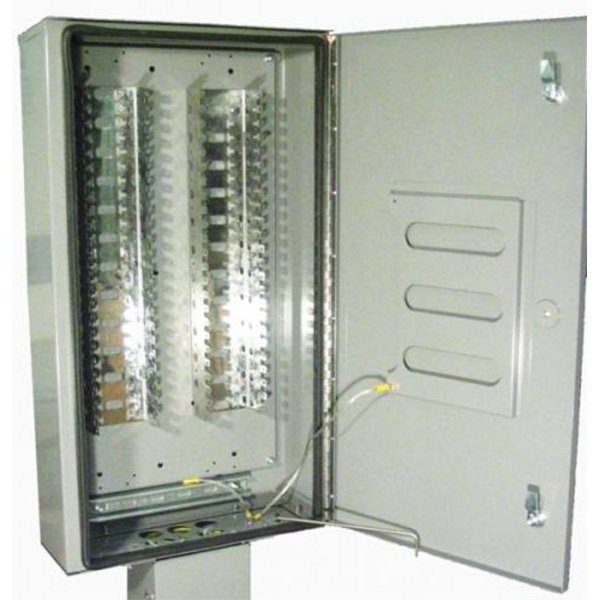

560 Pair Weatherproof Pole Mount Cabinet

The 560 Pair Cabinet is a medium security weatherproof cabinet designed for stand alone mounting in locations where wall mounting is not possible and/or a typical ground mounted pillar is not desirable e.g. Railway platforms, open car parks etc.

The rear backboard, typically fitted with dual 28 way 50 frames suitable for 237 connectors, is capable of passing through the door aperture. an alternative backboard, suited for DIN standard terminal rails is also available.

9CAB223501
OUT-DOOR DISTRIBUTION CABINETS

The 560 Pair Cabinet is a medium security weatherproof cabinet designed for stand alone mounting in locations where wall mounting is not possible and/or a typical ground mounted pillar is not desirable e.g. Railway platforms, open car parks etc.

The rear backboard, typically fitted with dual 28 way 50 frames suitable for 237 connectors, is capable of passing through the door aperture. an alternative backboard, suited for DIN standard terminal rails is also available.

Cable access is via a gland plate attached to the base of the cabinet and may be drilled to suit requirements. Pre-drilled plates are available as an option.

POSTS

Two post variants are available to suit installation requirements:

Type 22335: Sub-surface for installation in to an unprepared hole and includes anti-drag features to prevent the post being dragged from the hole after installation.

Type 22336: Sub-surface mounting for bolting to prepared flat surfaces.

Both types include integral cable binding points and secure heavy duty covers.

Removable brackets, suitable for wall or Unistrut mounting are also supplied.

SECURITY

Door is secured by two reinforced 1/4 turn latches with facility for additional security locks and has been tested to meet LPS1175 level 2 security rating.

FACT FILE

POST DETAILS (EXTRA)
