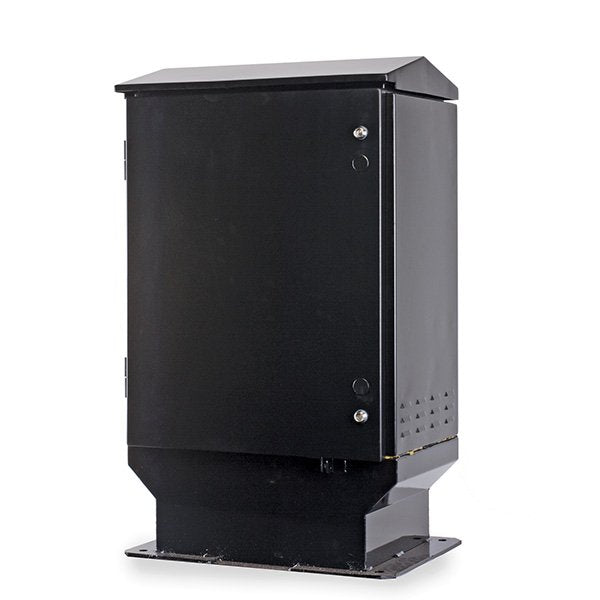

19-Inch Swing-Frame Cabinet
Couldn't load pickup availability
FDMS cabinets are Made in Britain at our manufacturing facility in Flintshire the 650 Range are designed for external use and are manufactured from 2mm thick 4003 stainless powder-coated, and are fully welded robust heavy-duty cabinets.
Our flexible design allows the cabinets to be used in many different applications ranging from FTTx, Traffic Monitoring, Comms equipment, 19” rack equipment, Security, power and much more.
The Heavy-Duty Swing-frame have a capacity of 16u with a maximum load of 100kg. The cabinet is supplied with a plywood back board.
The Heavy-Duty Swing-frame Cabinet is front access and comes complete with two compression locks, facility for secondary security key lock is provided within the door. As a single module it is part of a much larger family of our cabinets, please refer to our website for details.
Ventilation is provided through louvres manufactured within the front lower sections of the sides. The cabinets are supplied with either a two or three thermostatically controlled fans in the roof with all extraction points protected with mesh screen to prevent against vermin and insects, the cabinet can also be supplied with no fans.
Cabinets are design for sub-mount on a concreate base, it is recommended that once the cabinet is installed the base is filled with a resin pack.
DETAILS AND FEATURES
- Front access
- 19” Swing-frame
- Doors complete with 2-point lock and facility for secondary security lock system
- Apex roof
- Open base entry
- Fully welded construction
- Fully vented
- Also available in aluminium, 4003, 304 or 316 stainless
- Available in Black, Green or Grey as standard, other colours available on request
- IP55 rated
- Weight 98kgs approximate
- Base bolt hole and all four sides M20
AVAILABLE IN 3 TYPE OF EXTRACTION
H e i g h t ( m m ) |
W i d t h ( m m ) |
D e p t h ( m m ) |
C a p a c i t y |
---|---|---|---|
7 3 5 | 5 1 5 | 1 6 u | |
Part No. | 2 2 1 0 9 2 – 0 | F a n s | Z e r o |
Part No. | 2 2 1 0 9 2 – 2 | F a n s | 2 |
Part No. | 2 2 1 0 9 2 – 3 | F a n s | 3 |
