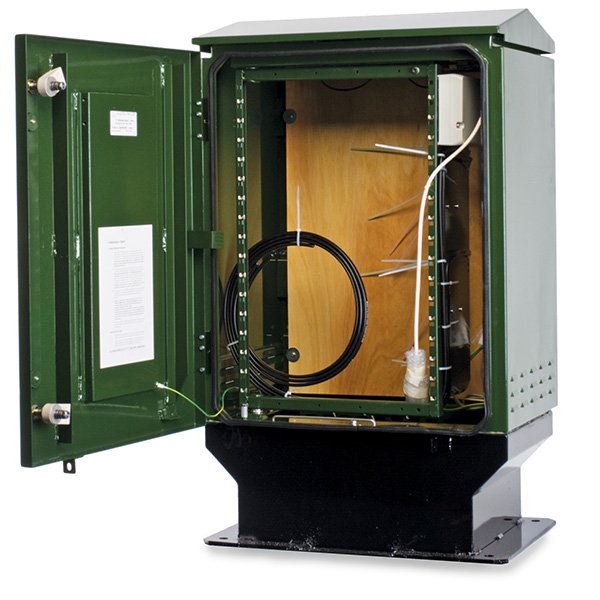

19-Inch Multipurpose Cabinet

Designed for the particular needs of outside broadcasting from permanent locations. The robust 16U 19″ Swing Frame, opens to provide access to rear mounted backboard.

The Multimedia Cabinet is supplied as standard with three thermostatically controlled fans to provide ventilation to any active equipment mounted inside.

9CAB222071 BLACK WITH 3 FANS
9CAB222072 GREEN WITH 3 FANS
OUT-DOOR DISTRIBUTION CABINETS

Designed for the particular needs of outside broadcasting from permanent locations. The robust 16U 19″ Swing Frame, opens to provide access to rear mounted backboard.

VENTILATION

The Multimedia Cabinet is supplied as standard with three thermostatically controlled fans to provide ventilation to any active equipment mounted inside.

EQUIPMENT MOUNTING (BACKBOARDS)

Cabinets are supplied with a 19″ rack mount frame (16U capacity). The frame is designed to hold up to 100kg of equipment and hinges on the lefthand side to allow easy access to the rear of the equipment.

For further flexibility in mounting equipment, a marine ply backboard (800mm high x 650mm wide) is also fitted. All wooden boards are pretreated.

The cabinet has capacity for up to 3 standard cable entry ducts.

INSTALLATION

Cabinet requires prepared sub-surface concrete foundation for installation.
