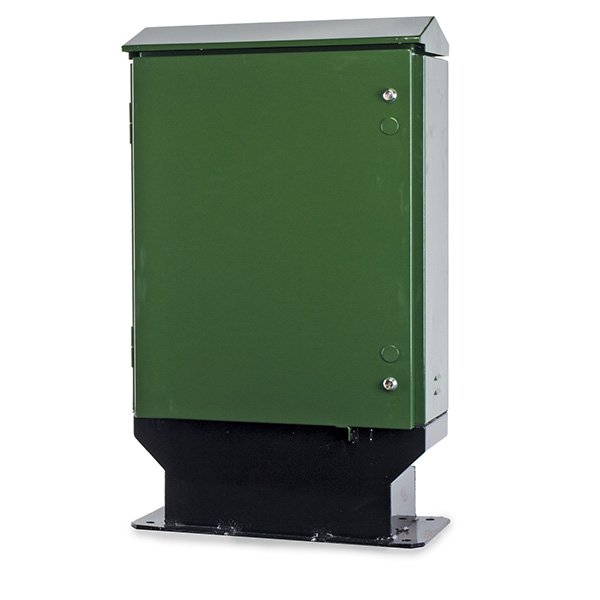

1200 Pair Cabinet
Couldn't load pickup availability
The 1200 pair cabinets are manufactured in aluminium. The cabinets are supplied as standard with heavy duty stainless steel latches and there is provision for secondary security locks.
These cabinets come in 2 colours:
9CAB216455 1200 PR GREEN
9CAB2164A5 1200 PR BLACK
OUT-DOOR DISTRIBUTION CABINETS
EQUIPMENT MOUNTING (BACKBOARDS)
The cabinet is supplied as standard with marine ply backboard for maximum flexibility in mounting equipment. Alternatively, the cabinets can be supplied with custom produced boards in stainless steel or aluminium on special order.
Optional gauge plates can be provided for mounting pressure gauges and transducers.
VENTING AND WEATHER RESISTANCE
As supplied the cabinet is IP55 rated for weather protection. Reversing the fitted cover plates on the ventilation points in the sides and sealing the plinth as defined in installation, IP65 weather protection may be achieved.
INSTALLATION
Cabinet requires prepared sub-surface concrete foundation for installation.
On commissioning it is recommended the interior of the plinth is sealed with Resin Pack 6B or equivalent for maximum weather and moisture resistance.
Dimensions WDH (mm) | 728x316x1220 |
Case Interior Size (effective) |
670x225x840 |
Plinth | 730x340x280 |
IP Protection | IP55/65 |
Bolt Hole Pitch | 635×255 |
Recommended Foundation (min) |
850x380x150 |
Recommended Plinth Install Depth |
100mm |
Optional Backboard | 600×700 |
Inbound Ducts | 3 |
Maximum Capacity | 1200 pair (4×30 way banks) |
Weight | 55kg |
Pallet Qty | 4 |
