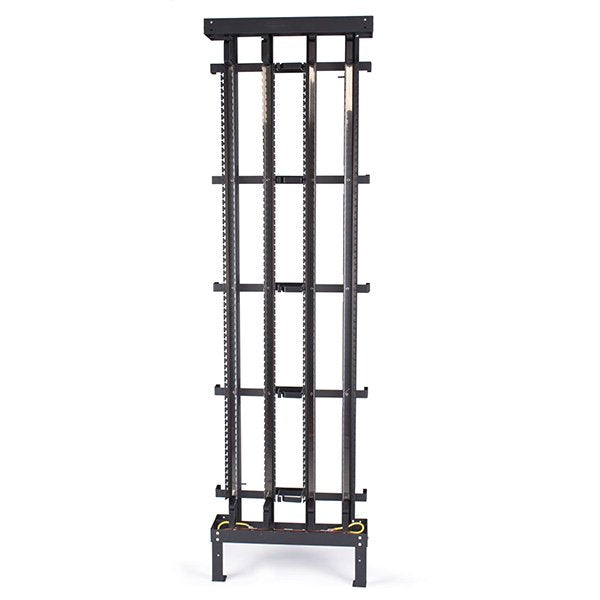

108A Distribution Frame Double (2-Vert)

Frame Distribution 108A is two vertical, modular distribution frame with capacity of 1380 pairs 10 pairs per strips connection 237A. Can be assembled side-by-side for wall mounting, or back-to-back for free-standing applications, cable management and earthing provided.
Adjustable legs allow for uneven flooring, or may be removed where height is a limitation.

9FRA223001
TELECOMS DISTRIBUTION FRAME
Height including legs: 2006mm
Height without legs: 1850mm
Width: 570mm
Depth: 150mm
Weight: 25Kg
Capacity: 1380 pair
